EdgesGauging.jl

Sub-pixel edge detection and robust geometric fitting (lines, circles) for machine-vision gauging tasks, written in pure Julia.

What it does

• 1-D edge detection in intensity profiles, with Gaussian smoothing and parabolic sub-pixel interpolation of gradient extrema. NaN-tolerant — works on profiles padded with NaN at the ends.
• 2-D edge detection across rectangular ROIs, multi-strip scans, and radial / ring scans from a reference point.
• Profile extraction along arbitrary paths — sample an image along a line segment or a circular arc with selectable interpolation (INTERP_NEAREST, INTERP_BILINEAR, INTERP_BICUBIC), configurable strip width, and explicit NaN for out-of-bounds samples.
• Robust geometric fitting via a generic RANSAC engine (ransac, ransac2) with constraint support — see LineConstraints and CircleConstraints for angle, radius, arc completeness, and inlier-count limits.

Install

] add https://github.com/schrpe/EdgesGauging.jl

(Once registered in the General registry: ] add EdgesGauging.)

Example: line and circle on a real part

Using the test image test/blob.tif — a 480×640 grayscale photograph of a metal plate — we demonstrate gauge_line on the slanted right edge and gauge_circle on the upper round hole.

using FileIO, Images, Random, EdgesGauging

Random.seed!(0)                       # RANSAC samples randomly — fix the seed
                                      # so these numbers reproduce.
img = Float64.(Gray.(load("test/blob.tif")))

# Line gauge — slanted right edge of the part
line_fit = gauge_line(
    img, (30, 380, 140, 530), LEFT_TO_RIGHT,
    15.0,                         # strip spacing (px)
    3,                            # strip thickness (px)
    2.0,                          # sigma - Gaussian smoothing
    0.05;                         # threshold - min |gradient|
    polarity = POLARITY_NEGATIVE, # bright metal → dark background
    selector = SELECT_BEST,
)

# Circle gauge — round hole near the top of the part
cc = CircleConstraints{Float64}(min_radius = 20.0, max_radius = 70.0)
circle_fit = gauge_circle(
    img, (135.0, 374.0),          # rough centre estimate (row, col)
    0.0, 2π,                      # full 360°
    deg2rad(30.0),                # angular step between rays
    60,                           # ray length (must exceed true radius)
    2.0, 0.05;                    # sigma, threshold
    polarity    = POLARITY_POSITIVE,   # ray dark hole → bright metal
    selector    = SELECT_BEST,
    constraints = cc,
    refine      = true,           # geometric LM refinement
)

Output (run via julia --project=docs docs/generate_readme_example.jl):

─ Line fit ────────────────────────────────────────────────
  A,B,C    = 0.575, -0.8181, -196.45
  angle    = 35.1° (from +x axis)
  inliers  = 15 / 21

─ Circle fit ──────────────────────────────────────────────
  centre (col,row) = (374.163, 135.715)
  radius (px)      = 45.654
  inliers          = 13 / 13

The fitted line is reported in normalised implicit form A·x + B·y + C = 0 with A² + B² = 1 and (x, y) = (col, row). The normalisation makes |A·x + B·y + C| the perpendicular distance (in pixels) from any point (x, y) to the line — that is exactly the residual RANSAC uses for inlier classification. (A, B) is the unit normal of the line; (-B, A) is its tangent direction, so the orientation reported as angle is atan(A, -B) wrapped into [-90°, 90°].

The line ROI is positioned so the lower strips graze the slant→vertical transition of the part's right edge — those strips deviate from the straight line and become the 6 RANSAC outliers shown in the overlay.

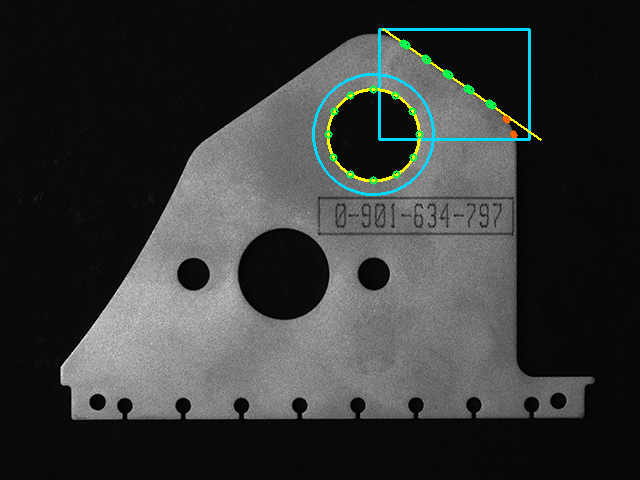

The annotated overlay below shows every layer of the pipeline:

Profile extraction along arbitrary paths

extract_line_profile and extract_arc_profile sample image intensity along a straight segment or a circular arc, returning a 1-D Vector{Float64} ready to feed into gauge_edges_in_profile:

# Slim profile across a feature, then sub-pixel edge detection
p = extract_line_profile(img, (row0, col0), (row1, col1);
                         width=1, interp=INTERP_BICUBIC)
r = gauge_edges_in_profile(p, 2.0, 10.0, POLARITY_POSITIVE, SELECT_BEST)

# Wider strip averages 5 parallel samples — useful when the feature is
# slightly tilted or noisy
p_strip = extract_line_profile(img, p0_rc, p1_rc; width=5)

# Arc-length-uniform sampling along an arc (auto-density)
p_arc = extract_arc_profile(img, (row_c, col_c), 40.0, 0.0, π/2)

Out-of-bounds samples are emitted as NaN. gauge_edges_in_profile is NaN-tolerant: NaN-padded profiles flow straight through and the edge is still found in the valid interior.

Conventions

• Image arrays are (row, col) — matching Julia's column-major indexing.
• center_rc and segment-endpoint arguments are therefore (row, col) tuples.
• Integer index = pixel centre. image[i, j] is the value at (row, col) = (i, j); the pixel itself spatially covers (i-0.5, j-0.5) … (i+0.5, j+0.5). Sample positions outside (0.5, 0.5)…(nrows+0.5, ncols+0.5) yield NaN.
• Detected edges in ImageEdge are exposed as Cartesian (x = col, y = row) for consumers that prefer image-space coordinates.

Error handling

gauge_line and gauge_circle throw GaugingError with a reason::Symbol field when a pipeline fails:

• :too_few_points — edge detection produced fewer points than the fitter requires.
• :ransac_failed — RANSAC could not find a model satisfying the supplied constraints (radius range, angle range, arc completeness, …).

Catch on e.reason to branch on the failure mode:

try
    fit = gauge_circle(img, (row, col), 0, 2π, deg2rad(3), 80, 2.0, 0.1)
catch e
    e isa GaugingError && e.reason === :too_few_points || rethrow()
    # fall back to a coarser threshold / larger ROI / …
end

See the API reference for the complete public interface.
